Pigmen kuning 151-Corimax Yellow H4G

Technical parameters of Pigment yellow 151

Indeks Warna	Pigmen kuning 151
Nama Produk	Corimax Yellow H4G
Kategori Produk	Pigmen organik
Nombor CAS	31837-42-0
Nombor EU	250-830-4
Keluarga kimia	Mono azo
Berat Molekul	381.34
Formula molekul	C18H15N5O5
Nilai PH	7
Ketumpatan	1.6
Penyerapan Minyak (ml / 100g)%	45
Ketepatan cahaya (salutan)	6-7
Rintangan haba (salutan)	200
Ketepatan cahaya (plastik)	7-8
Rintangan haba (plastik)	260
Rintangan Air	5
Rintangan Minyak	5
Rintangan Asid	5
Rintangan Alkali	5
Warna

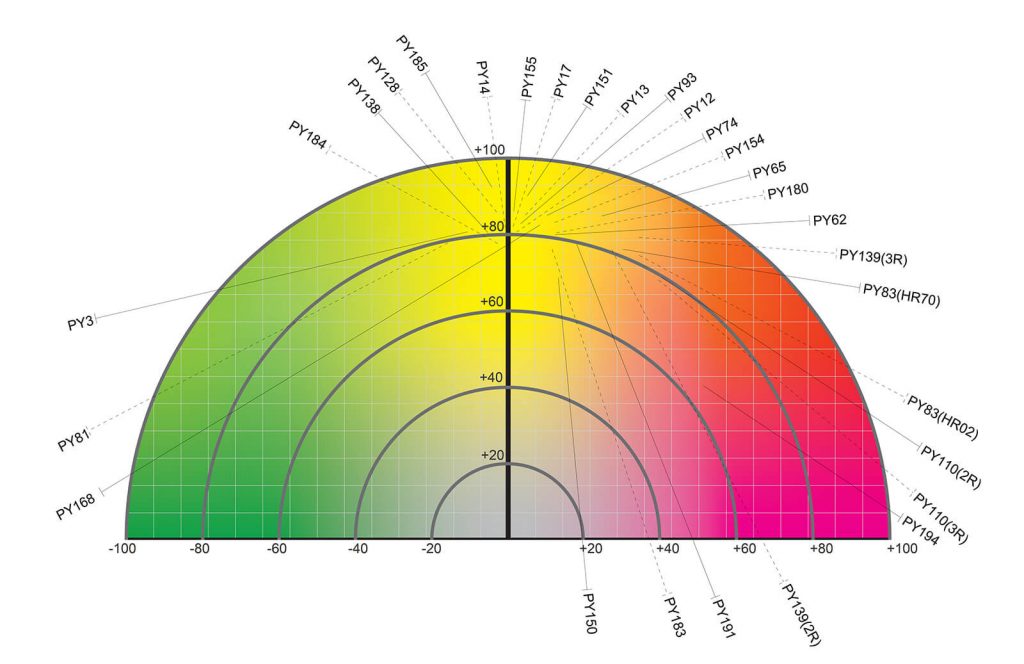

Pengedaran Hue	py

Struktur molekul:

Permohonan:

Recommended for automotive paints, architectural coatings, coil coatings, industrial paints, powder coatings, printing pastes, PVC, rubber, PS, PP, PE, PU, water based inks, solvent inks, UV inks.
Boleh digunakan dalam dakwat mengimbangi.

TDS( Pigment yellow 151) MSDS(Pigment yellow 151) -------------------------------------------------- ---------------

Maklumat Berkaitan

Pigment yellow 151 gives a hue that is greener than CI Pigment Yellow 154 and redder than Pigment Yellow 175. The hue angle is 97.4 degrees (1 / 3SD). The specific surface area of Hostaperm Yellow H4G is 23m² / g, which has good hiding power. The fastness is excellent. The coloring sample of alkyd trinitrile resin is exposed to Florida for 1 year. The weather fastness has a grade 5 gray card, and the dilute color (1; 3TiO2) is still grade 4; 1/3 The heat resistance stability of HDPE in standard depth is 260 ° C / 5min; it is suitable for high-end industrial coatings, automotive primers (OEM), and can be combined with phthalocyanines and inorganic pigments, and can also be used for printing polyester laminated plastic films Ink coloring.

aliases：13980; Benzoic acid, 2-(2-(1-(((2,3-dihydro-2-oxo-1H-benzimidazol-5-yl)amino)carbonyl)-2-oxopropyl)diazenyl)-; pigment yellow 151; 2-[[1-[[(2,3-Dihydro-2-oxo-1H-benzimidazol-5-yl)amino]carbonyl]-2-oxopropyl]azo]benzoic acid; C.I. 13980; fast yellow h4g; 2-[2-OXO-1-[(2-OXO-1,3-DIHYDROBENZOIMIDAZOL-5-YL)CARBAMOY; PROPYL]DIAZENYLBENZOIC ACID; Benzoic acid, 2-1-(2,3-dihydro-2-oxo-1H-benzimidazol-5-yl)aminocarbonyl-2-oxopropylazo-; BENZIMIDAZOLONE YELLOS H4G; Benzimidazolone Yellow H4G(Pigment Yellow 151); 2-[(E)-{1,3-dioxo-1-[(2-oxo-2,3-dihydro-1H-benzimidazol-5-yl)amino]butan-2-yl}diazenyl]benzoic acid; 2-[2-oxo-1-[(2-oxo-1,3-dihydrobenzimidazol-5-yl)carbamoyl]propyl]azobenzoic acid.

IUPAC Name: 2-[[1,3-dioxo-1-[(2-oxo-1,3-dihydrobenzimidazol-5-yl)amino]butan-2-yl]diazenyl]benzoic acid

InChI : InChI=1S/C18H15N5O5/c1-9(24)15(23-22-12-5-3-2-4-11(12)17(26)27)16(25)19-10-6-7-13-14(8-10)21-18(28)20-13/h2-8,15H,1H3,(H,19,25)(H,26,27)(H2,20,21,28)

InChIKey: YMFWVWDPPIWORA-UHFFFAOYSA-N

Canonical SMILES: CC(=O)C(C(=O)NC1=CC2=C(C=C1)NC(=O)N2)N=NC3=CC=CC=C3C(=O)O

Chemical and Physical Properties

Computed Properties

Property Name	Property Value
Berat Molekul	381.3 g/mol
XLogP3-AA	1.7
Hydrogen Bond Donor Count	4
Hydrogen Bond Acceptor Count	7
Rotatable Bond Count	6
Exact Mass	381.10731860 g/mol
Monoisotopic Mass	381.10731860 g/mol
Topological Polar Surface Area	149Å²
Heavy Atom Count	28
Formal Charge	0
Complexity	681
Isotope Atom Count	0
Defined Atom Stereocenter Count	0
Undefined Atom Stereocenter Count	1
Defined Bond Stereocenter Count	0
Undefined Bond Stereocenter Count	0
Covalently-Bonded Unit Count	1
Compound Is Canonicalized	Yes

Handling and storage:

Pengendalian

Nasihat tentang perlindungan terhadap kebakaran dan letupan
Jauhkan daripada sumber pencucuhan
Elakkan pembentukan habuk
Ambil langkah berjaga-jaga terhadap beban elektrostatik
